FOXESS 5kW / 27.84kWh Battery System — 1 Phase

$10,723.50

FOXESS H1-G2 5.0 kW single-phase hybrid inverter + 27.84 kWh CQ7 storage (4 modules) · backup supply · new install or AC-coupled retrofit

In one line
The FOXESS 5kW 27.84kWh 1 Phase battery system: a 5 kW hybrid inverter paired with 27.84 kWh of storage, supplied and installed as one package.

Who this suits
A modest solar array with a lot of storage behind it.

Before you choose on size
Federal battery certificates are tiered — weighted toward the first 14 kWh of usable capacity, tapering from 14 to 28 kWh, and small above that. A larger battery does not attract a proportionally larger discount. Choose capacity on your evening and overnight usage and whether you want extended backup, not on the rebate.
→ How the rebates work

What is in the FOXESS 5kW 27.84kWh 1 Phase battery system

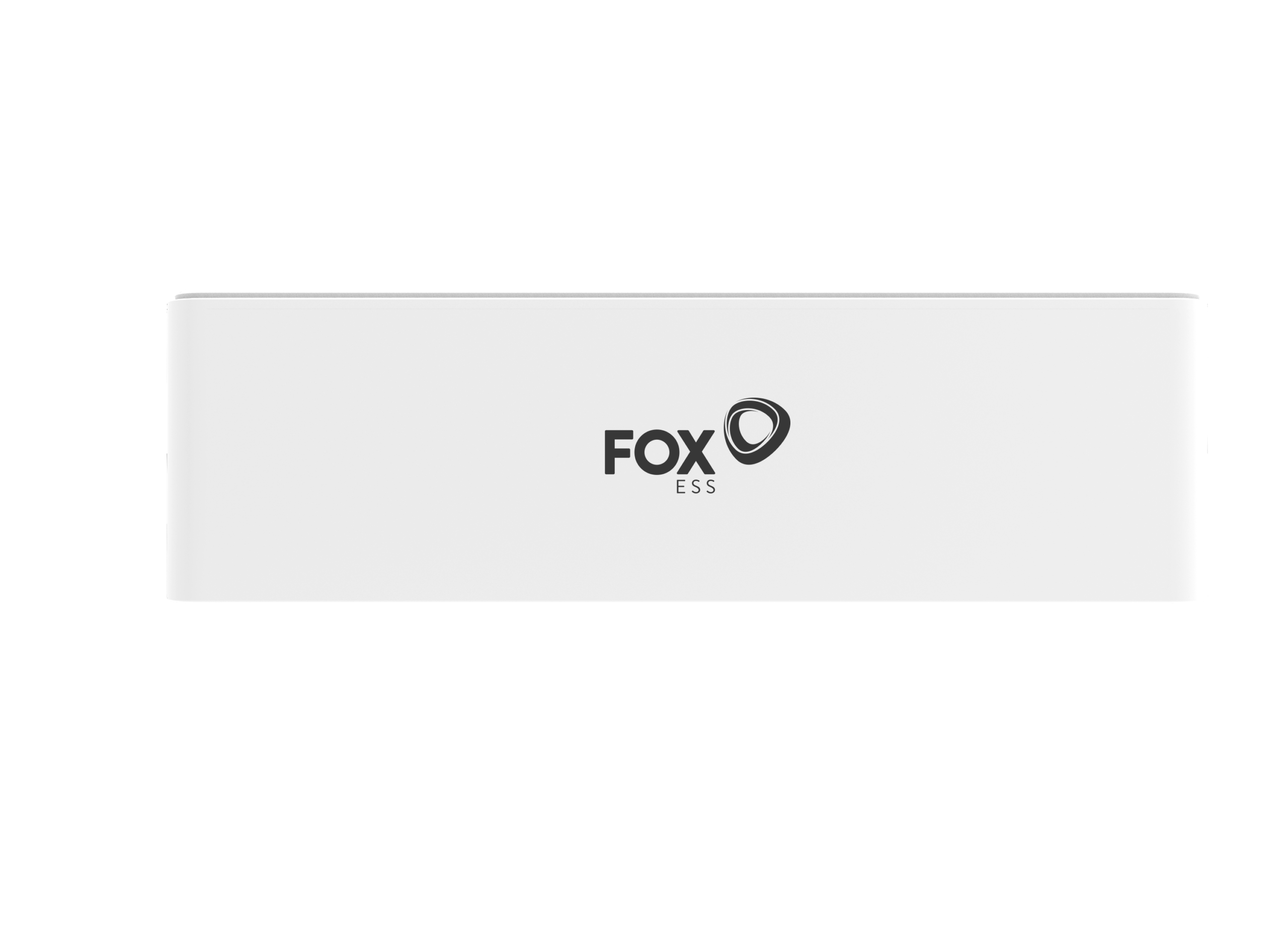

FOXESS 5kW 27.84kWh 1 Phase battery system: FOXESS CQ7-M master battery unit
The FOXESS 27.84kWh battery: one CQ7-M master unit (shown) plus three CQ7 modules, 6.96 kWh each.

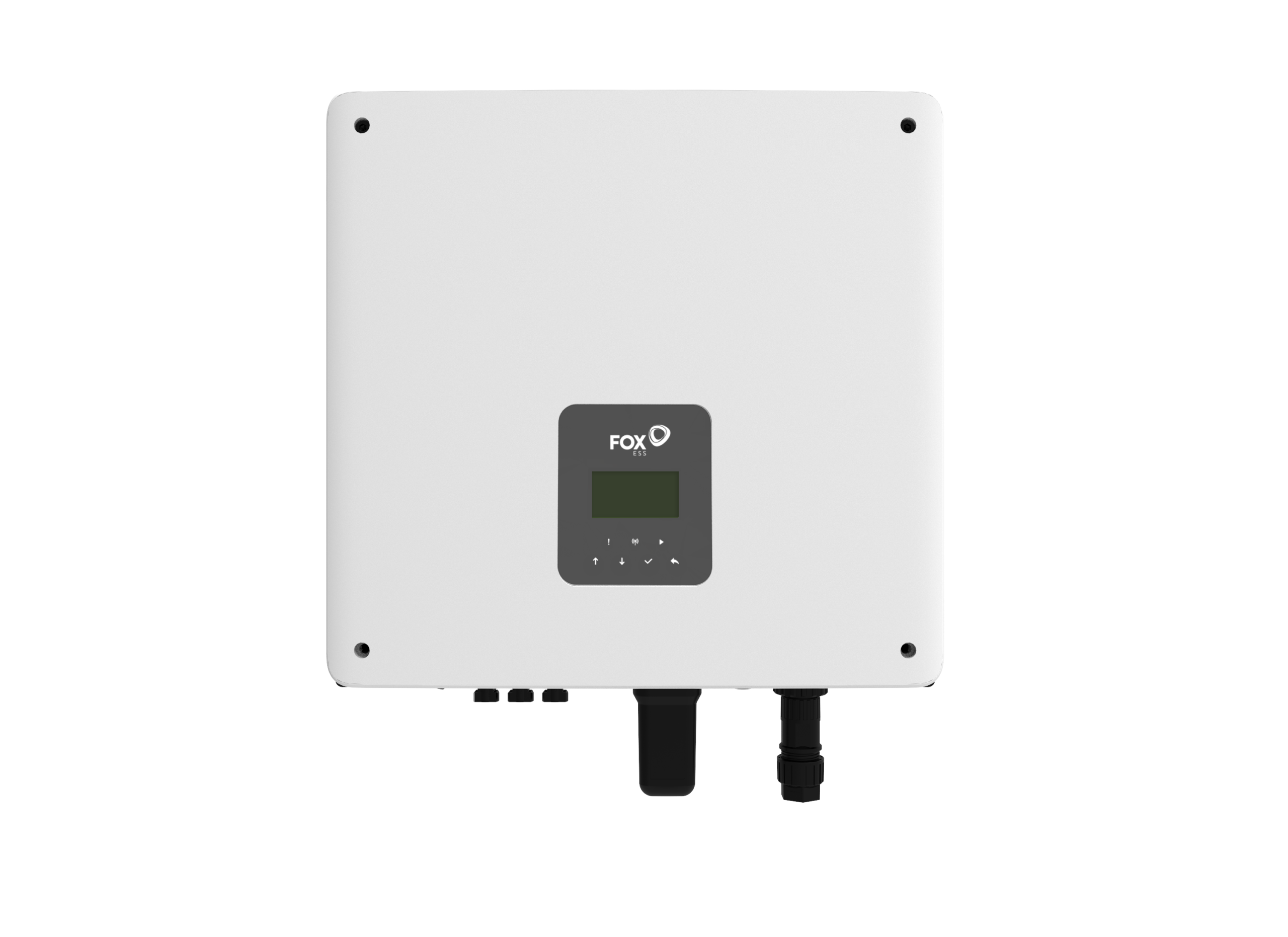

A complete single-phase energy system: the FOXESS H1-5.0-E-G2 hybrid inverter paired with a 27.84 kWh CQ7 high-voltage battery stack — one master unit plus three modules at 6.96 kWh each, all of it usable.

This is the entry point into the FOXESS range and suits a typical Victorian household on single-phase supply that wants a full night of stored energy rather than a token battery. The 5 kW inverter accepts up to 10 kW of panels (200% of its rating) across two MPPT inputs. Two CT clamps come with it: one at the grid connection, so the inverter sees what the house imports and exports, and a second for an existing solar inverter if you keep one.

With the battery installed, the backup (EPS) output keeps a dedicated circuit running during an outage, up to 5 kVA. Which loads go on that circuit is decided at the site assessment.

The system works either as a new installation or AC-coupled onto existing solar, so an earlier array does not have to be replaced.

FOXESS 5kW 27.84kWh 1 Phase key specifications

  • Inverter: FOXESS H1-5.0-E-G2 hybrid, single phase, 5 kW
  • Solar: up to 10 kW of panels across 2 MPPT inputs
  • Battery: FOXESS CQ7, one CQ7-M master and three CQ7-S modules, 27.84 kWh usable (lithium iron phosphate)
  • Backup: EPS output to a dedicated circuit, 5 kVA, switchover under 20 ms
  • Metering: two CT clamps (grid connection, plus an existing solar inverter if there is one)
  • Battery size: 660 × 360 mm footprint, about 730 mm tall, about 207 kg
  • Protection: IP65 inverter and battery
  • Monitoring: FoxCloud app and web portal
  • Warranty: 10 years on the inverter and the battery (battery to 70% of its energy or a set throughput, whichever comes first)

Not sure the FOXESS 5kW 27.84kWh 1 Phase system is the right size? Build your system recommends an inverter and battery from your usage, roof and phase, and our home battery page explains how storage works with solar.

Want more detail before you choose the FOXESS 5kW 27.84kWh 1 Phase system? Read our guides to the FOXESS H1 G2 hybrid inverter, the FOXESS CQ7 battery and FOXESS backup and the AirGate.

Panels, mounting and installation are quoted separately after a site assessment. Indicative values are not a quote.

Manufacturer information on the FOXESS 5kW 27.84kWh 1 Phase battery system: FOXESS CQ7 battery. You can check any battery on the Clean Energy Council approved batteries list.

Additional information

Brand

FOXESS

Phase

1 Phase

Inverter Output

5 kW

Battery Capacity

27.84 kWh

CT Configuration

2CT
