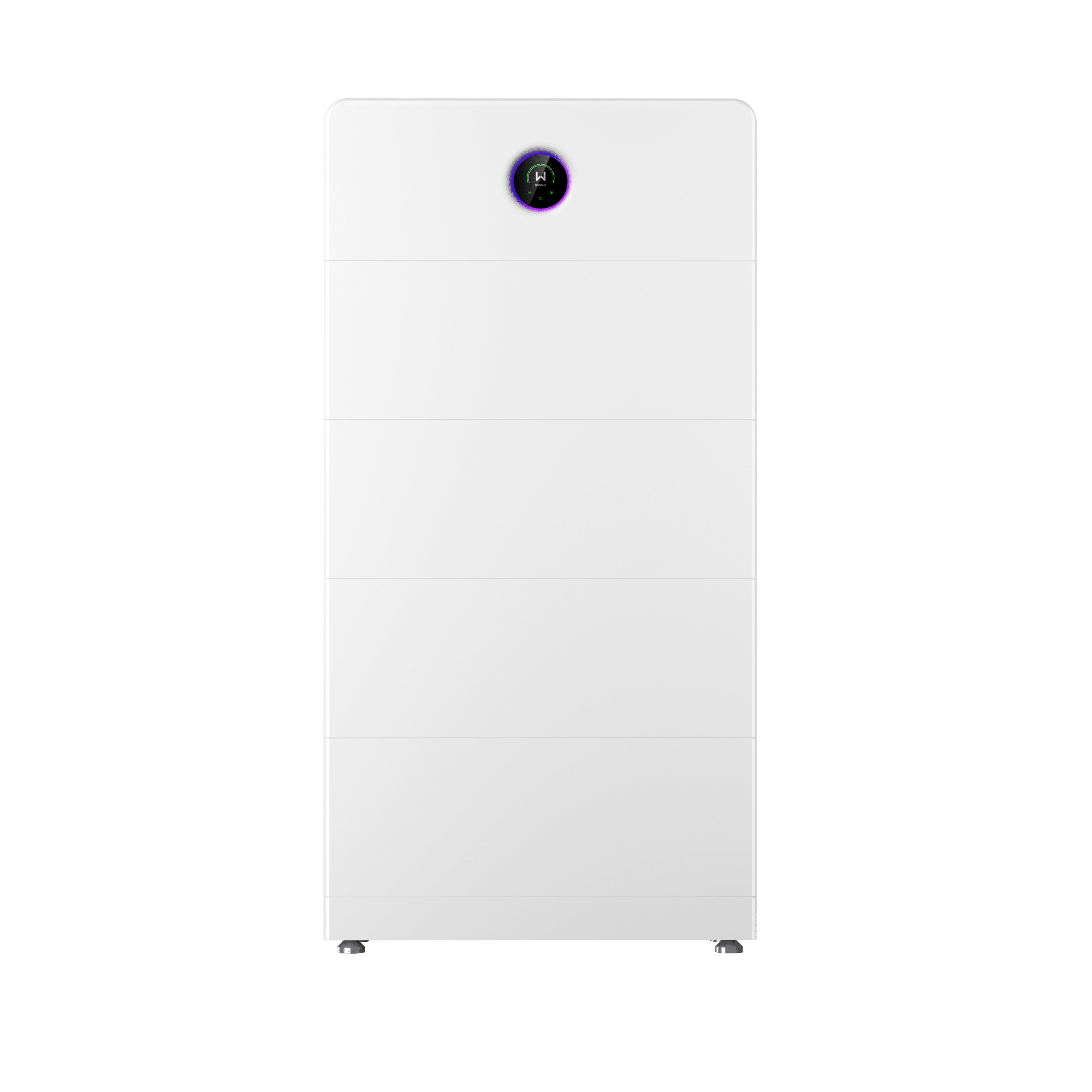

GoodWe 10kW Single Phase All-in-One Inverter
The GoodWe All in One 10kW Single Phase Inverter is a high-performance hybrid solar energy solution designed to deliver efficient power management, reliable backup, and intelligent battery integration for modern homes. The 10kW Single Phase inverter combines advanced solar conversion technology with an integrated energy storage design, helping homeowners maximise solar self-consumption and achieve greater energy independence.
Featuring 200% PV oversizing, 4 MPPTs, and 1 string per MPPT, the 10kW Single Phase inverter provides excellent solar generation performance and flexible installation options across different roof configurations. This all-in-one system includes a built-in meter, Wi-Fi monitoring, backup power capability, grid-forming technology, changeover switch, and battery base for seamless solar and battery management.
Designed for efficiency, reliability, and ease of use, the 10kW Single Phase solution allows users to store excess solar energy and access dependable backup power during grid outages. With smart monitoring features and advanced safety protection, this inverter supports efficient energy control while reducing electricity costs.
The GoodWe All in One 10kW Single Phase Inverter is an ideal choice for residential solar battery systems requiring a powerful, flexible, and future-ready energy solution. Upgrade your solar setup with the 10kW Single Phase inverter for enhanced performance, intelligent energy storage, and greater energy independence.
Description
| Specifications | |
|---|---|
| Rating (kW) | 9.99 |
| MPPT | 4 |
| IP Rating | IP66 |
| Phase | Single Phase |
| Type | Hybrid HV |
| Use Application | Residential, Residential Hybrid |
| CEC Model | GW9.999K-EHA-G20 (AS4777-2 2020) |
| Shipping Information | |
| Weight (kg) | 24.00 |
| Qty per Pallet | 4 |
| Pallet Weight (kg) | 179.00 |
| Dimension (L × W × H mm) | 800 × 270 × 300 |
| Pallet Dimension (L × W × H mm) | 1120 × 957 × 1065 |
| Packaging Dimension (L × W × H mm) | 1086 × 471 × 462 |
