In one line
The GoodWe 9.99kW 16kWh 1 Phase battery system: a 9.99 kW hybrid inverter paired with 16 kWh of storage, supplied and installed as one package.
Who this suits
Smallest in the range. Modest evening usage, smaller households.
Before you choose on size
Federal battery certificates are tiered — weighted toward the first 14 kWh of usable capacity, tapering from 14 to 28 kWh, and small above that. A larger battery does not attract a proportionally larger discount. Choose capacity on your evening and overnight usage and whether you want extended backup, not on the rebate.
→ How the rebates work
What is in the GoodWe 9.99kW 16kWh 1 Phase battery system

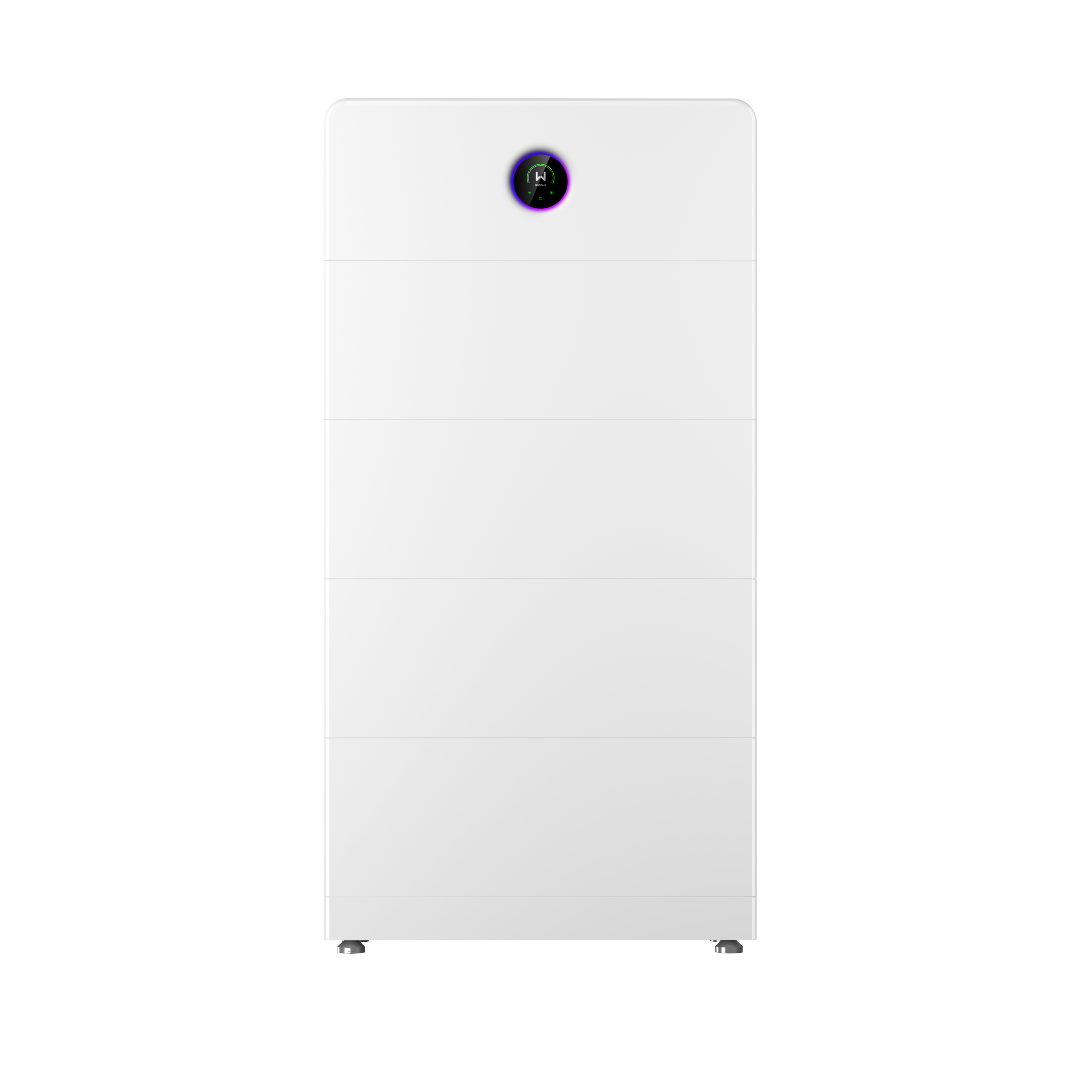

The GoodWe ESA all-in-one on single-phase supply with two high-voltage battery modules — 16 kWh of usable storage.
The ESA stacks the hybrid inverter on top of its battery modules and builds the backup switching in, so the install is one tidy unit against a wall or on the floor rather than an inverter plus several separate enclosures.
16 kWh is a sensible starting battery for a household that wants to cover the evening peak and the overnight base load without over-investing. When the grid goes down, the ESA switches to backup in under 4 milliseconds, and with its 63 A bypass the whole switchboard can be wired to stay on, within the 10 kVA backup output.
Four MPPT inputs take up to 20 kW of panels, 200% of the inverter rating, so there is room for a large array across several roof faces.
GoodWe 9.99kW 16kWh 1 Phase key specifications
- Inverter: GoodWe ESA GW9.999K-EHA-G20 hybrid, single phase, 9.999 kW
- Solar: up to 20 kW of panels across 4 MPPT inputs
- Battery: two GoodWe GW8.3-BAT-D-G21 modules, 8.0 kWh usable each (8.32 kWh rated), 16 kWh usable in total (lithium iron phosphate)
- Backup: built-in 63 A bypass for blackouts, no separate backup gateway; 10 kVA backup output (20 kVA for 10 seconds); switchover under 4 ms
- Size: 800 mm wide and 270 mm deep; each battery module weighs 79 kg
- Protection: IP66 inverter and battery modules; each module has a built-in aerosol fire-extinguishing unit
- Monitoring: SEMS+ app over Wi-Fi, LAN or Bluetooth
- Warranty: 10 years on the inverter and the battery modules (battery to 70% of its usable energy or a set throughput, whichever comes first)
Not sure the GoodWe 9.99kW 16kWh 1 Phase system is the right size? Build your system recommends an inverter and battery from your usage, roof and phase, and our home battery page explains how storage works with solar.
Want more detail before you choose the GoodWe 9.99kW 16kWh 1 Phase system? Read our guides to the GoodWe ESA all-in-one battery, the GoodWe 8.3 kWh battery module and GoodWe ESA backup in a blackout.
Panels, mounting and installation are quoted separately after a site assessment. Indicative values are not a quote.
Manufacturer information on the GoodWe 9.99kW 16kWh 1 Phase battery system: GoodWe ESA series. You can check any battery on the Clean Energy Council approved batteries list.
Additional information
| Brand | GoodWe |
|---|---|
| Phase | 1 Phase |
| Inverter Output | 10 kW |
| Battery Capacity | 16 kWh |
