FOXESS 8kW / 41.76kWh Battery System — 1 Phase

$14,817.00

FOXESS KH 8.0 kW single-phase hybrid inverter + 41.76 kWh CQ7 (V6) storage (6 modules) · backup supply · new install or AC-coupled retrofit

In one line
The FOXESS 8kW 41.76kWh 1 Phase battery system: a 8 kW hybrid inverter paired with 41.76 kWh of storage, supplied and installed as one package.

Who this suits
High overnight usage, single phase.

Before you choose on size
Federal battery certificates are tiered — weighted toward the first 14 kWh of usable capacity, tapering from 14 to 28 kWh, and small above that. A larger battery does not attract a proportionally larger discount. Choose capacity on your evening and overnight usage and whether you want extended backup, not on the rebate.
→ How the rebates work

What is in the FOXESS 8kW 41.76kWh 1 Phase battery system

FOXESS 8kW 41.76kWh 1 Phase battery system: FOXESS CQ7-M master battery unit
The FOXESS 41.76kWh battery: one CQ7-M master unit (shown) plus five CQ7 modules, 6.96 kWh each.

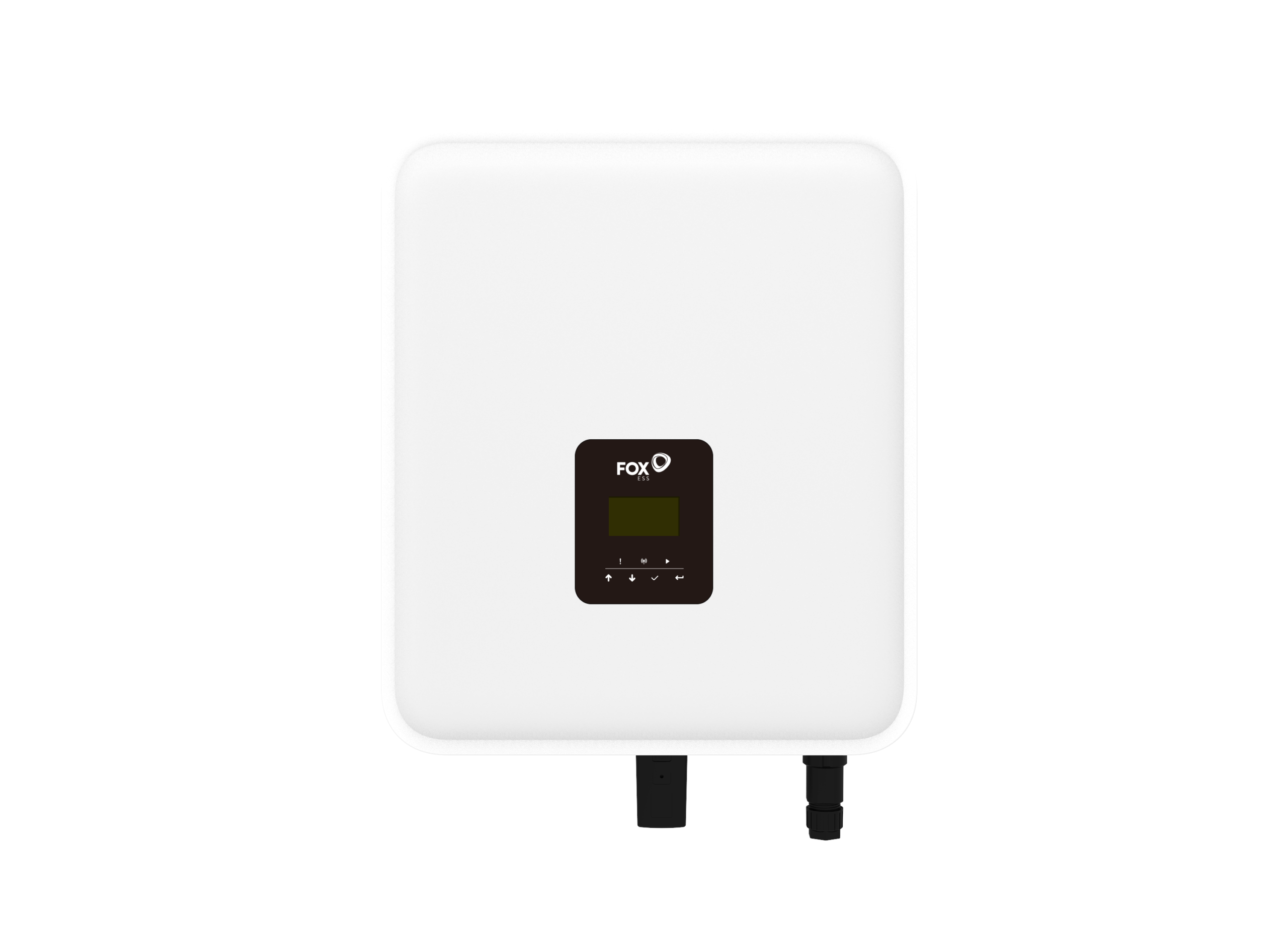

The FOXESS KH8 hybrid inverter with a 41.76 kWh CQ7 (V6) high-voltage battery stack — one master unit plus five modules at 6.96 kWh each, all usable.

This is a well-balanced large single-phase build: enough inverter capacity for a substantial array (three MPPTs, up to 16 kW of panels at 200% oversizing) and enough storage to cover heavy evening use and extended outages.

The KH series backup supply keeps nominated circuits running from the battery when the grid is down. Which circuits those are is a design decision made at the site assessment, not a default.

Two CT clamps come with it, one at the grid connection and one for an existing solar inverter, so it installs as new solar or AC-couples onto an existing array.

FOXESS 8kW 41.76kWh 1 Phase key specifications

  • Inverter: FOXESS KH8 hybrid, single phase, 8 kW
  • Solar: up to 16 kW of panels across 3 MPPT inputs
  • Battery: FOXESS CQ7, one CQ7-M (V6) master and five CQ7-S modules, 41.76 kWh usable (lithium iron phosphate)
  • Backup: EPS output for nominated circuits, 8 kVA, switchover under 10 ms
  • Metering: two CT clamps (grid connection, plus an existing solar inverter if there is one)
  • Battery size: 660 × 360 mm footprint, about 1,040 mm tall, about 308 kg
  • Protection: IP65 inverter and battery
  • Monitoring: FoxCloud app and web portal
  • Warranty: 10 years on the inverter and the battery (battery to 70% of its energy or a set throughput, whichever comes first)

Not sure the FOXESS 8kW 41.76kWh 1 Phase system is the right size? Build your system recommends an inverter and battery from your usage, roof and phase, and our home battery page explains how storage works with solar.

Want more detail before you choose the FOXESS 8kW 41.76kWh 1 Phase system? Read our guides to the FOXESS KH8 vs KH9.9, the FOXESS CQ7 battery and FOXESS backup and the AirGate.

Panels, mounting and installation are quoted separately after a site assessment. Indicative values are not a quote.

Manufacturer information on the FOXESS 8kW 41.76kWh 1 Phase battery system: FOXESS CQ7 battery. You can check any battery on the Clean Energy Council approved batteries list.

Additional information

Brand

FOXESS

Phase

1 Phase

Inverter Output

8 kW

Battery Capacity

41.76 kWh

CT Configuration

2CT
