FOXESS 9.9kW / 27.84kWh Battery System — 1 Phase

$11,773.50

FOXESS KH 9.9 kW single-phase hybrid inverter + 27.84 kWh CQ7 storage (4 modules) · backup supply · new install or AC-coupled retrofit

In one line
The FOXESS 9.9kW 27.84kWh 1 Phase battery system: a 9.9 kW hybrid inverter paired with 27.84 kWh of storage, supplied and installed as one package.

Who this suits
Larger single-phase array, higher daytime generation.

Before you choose on size
Federal battery certificates are tiered — weighted toward the first 14 kWh of usable capacity, tapering from 14 to 28 kWh, and small above that. A larger battery does not attract a proportionally larger discount. Choose capacity on your evening and overnight usage and whether you want extended backup, not on the rebate.
→ How the rebates work

What is in the FOXESS 9.9kW 27.84kWh 1 Phase battery system

FOXESS 9.9kW 27.84kWh 1 Phase battery system: FOXESS CQ7-M master battery unit
The FOXESS 27.84kWh battery: one CQ7-M master unit (shown) plus three CQ7 modules, 6.96 kWh each.

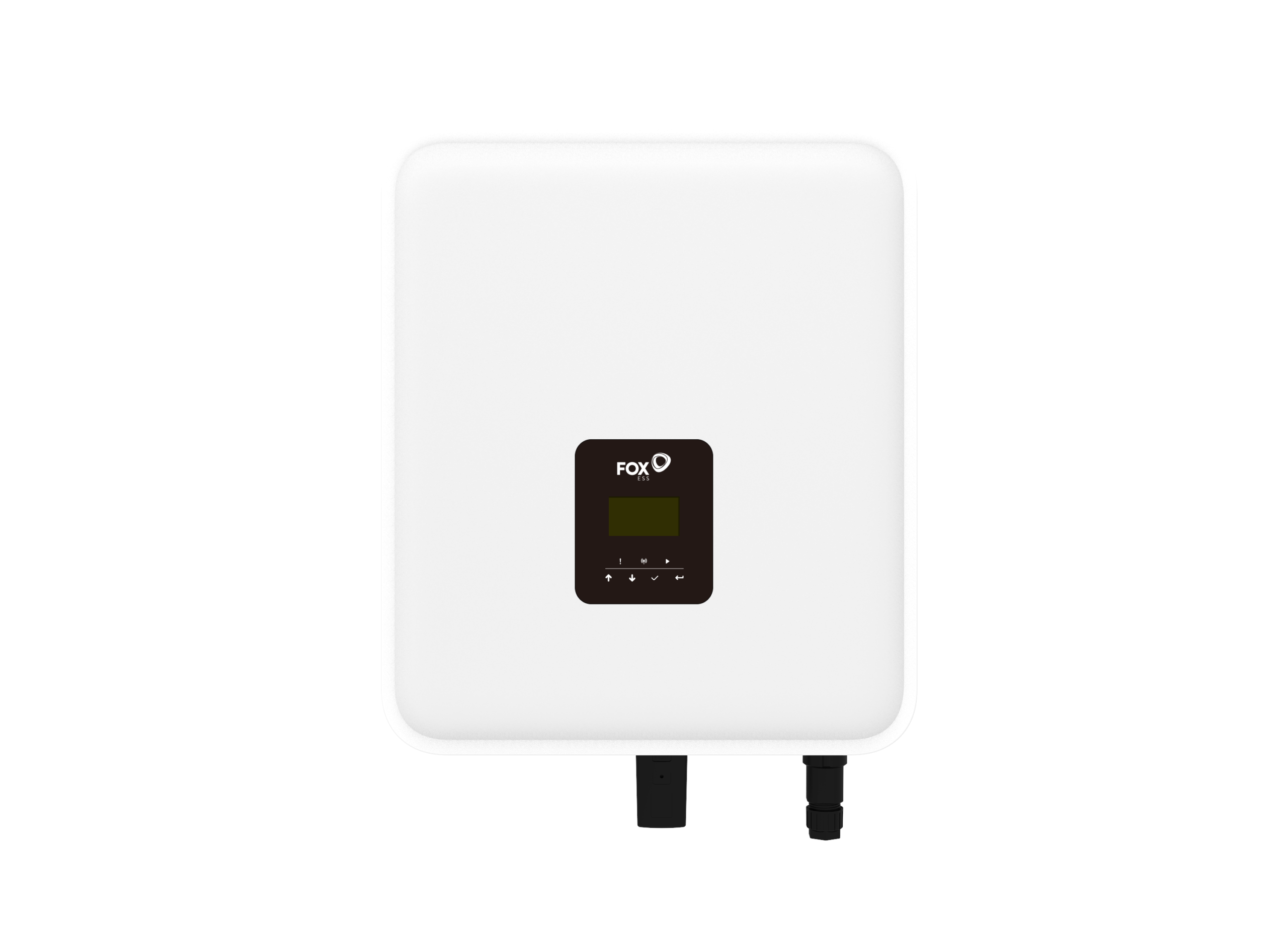

The largest single-phase FOXESS inverter in our range, the KH9.9, paired with a 27.84 kWh CQ7 high-voltage battery stack — one master unit plus three modules at 6.96 kWh each, all usable.

Its four MPPT inputs give more layout freedom than any other FOXESS inverter we install, and it accepts up to 20 kW of panels (about 200% of its 9.9 kW rating), which leaves real headroom for adding to the array later. Single-phase connection limits vary by distributor, and we confirm yours before installation.

A backup (EPS) supply keeps nominated circuits live from the battery during an outage. Installs as new solar or AC-couples onto an existing array.

FOXESS 9.9kW 27.84kWh 1 Phase key specifications

  • Inverter: FOXESS KH9.9 hybrid, single phase, 9.9 kW
  • Solar: up to 20 kW of panels across 4 MPPT inputs
  • Battery: FOXESS CQ7, one CQ7-M master and three CQ7-S modules, 27.84 kWh usable (lithium iron phosphate)
  • Backup: EPS output for nominated circuits, 9.9 kVA, switchover under 10 ms
  • Metering: two CT clamps (grid connection, plus an existing solar inverter if there is one)
  • Battery size: 660 × 360 mm footprint, about 730 mm tall, about 207 kg
  • Protection: IP65 inverter and battery
  • Monitoring: FoxCloud app and web portal
  • Warranty: 10 years on the inverter and the battery (battery to 70% of its energy or a set throughput, whichever comes first)

Not sure the FOXESS 9.9kW 27.84kWh 1 Phase system is the right size? Build your system recommends an inverter and battery from your usage, roof and phase, and our home battery page explains how storage works with solar.

Want more detail before you choose? Read our guides to the FOXESS KH8 vs KH9.9, the FOXESS CQ7 battery and FOXESS backup and the AirGate.

Panels, mounting and installation are quoted separately after a site assessment. Indicative values are not a quote.

Manufacturer information on the FOXESS 9.9kW 27.84kWh 1 Phase battery system: FOXESS CQ7 battery. You can check any battery on the Clean Energy Council approved batteries list.

Additional information

Brand

FOXESS

Phase

1 Phase

Inverter Output

10 kW

Battery Capacity

27.84 kWh

CT Configuration

2CT
